APFC Panel means Automatic Power Factor Correction Panel. In some cases, in
industrial applications, the loading pattern of the entire network will change
from time to time. So if that type of Industries connect a fixed compensation. It
will not be in a position to compensate exactly what is required for Power
Factor. But, in case of APFC panels that type industry will have a
microprocessor or Micro controller based relay which helps you to sense the
load current instantaneously and the particular MC
relay will hunt for capacitors to compensate and power
factor improvement will be automatic. APFC is nothing
but steps of capacitors connected to the contactor in
turn connected to the breakers and relay. It doesn’t
require much of the manual support as of fixed
compensation is concerned. Your power factor will be
improved automatically; APFC will have a step by step
compensation. in lucknow
phase
three phase
voltage
415 v
Material
Mild Steel
Usage
industrial/ Residential
frequency
50hz
Service Provider Name
Lucknow Electric
Service Provider Region
Lucknow and near by places
SME Standard Power Factor Panel ranges

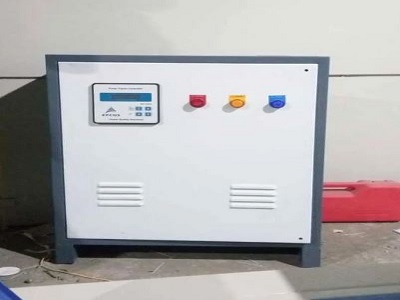

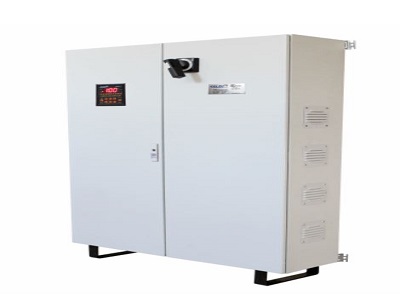

SME APFC Panels 5 – 35 kvar (wall−mounted)
SME APFC Panels 10 – 87.5 kvar (wall−mounted)
SME APFC Panels 75 – 150 kvar (wall−mounted)
SME APFC Panels 110 – 400 kvar (standard)
SME APFC Panels 300 – 1200 kvar (standard)
SME PFC Panels RF 60 – 920 kvar (detuned)
SME DPFC Panels 60 – 1260 kvar (fast−switched)

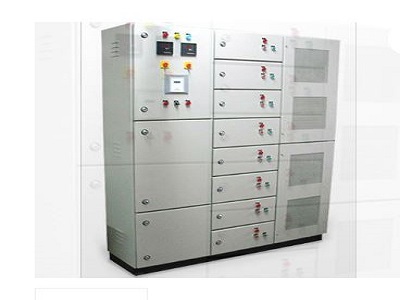

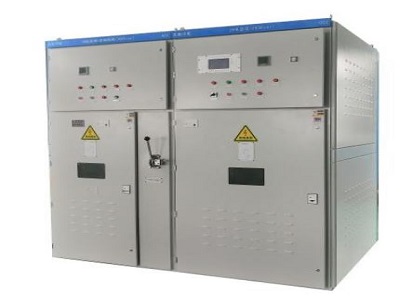

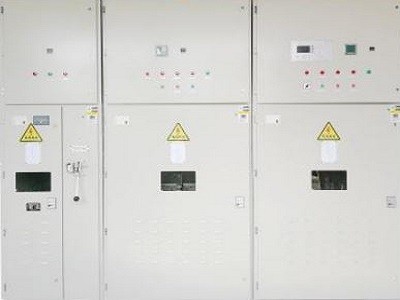

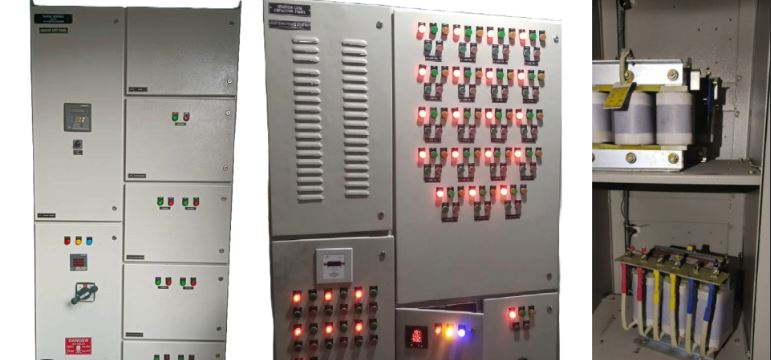

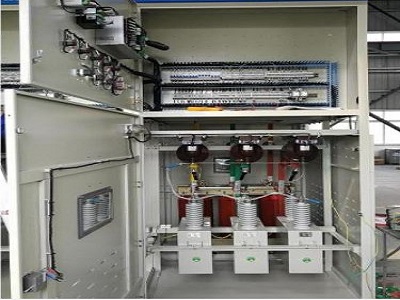

SME - APFC Panel Construction:
Power Factor Panels are constructed in steel−plate cabinets (vertical
construction mounted type by smaller power ranges).

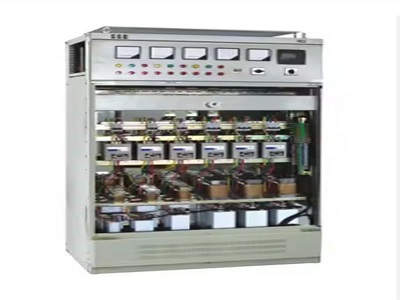

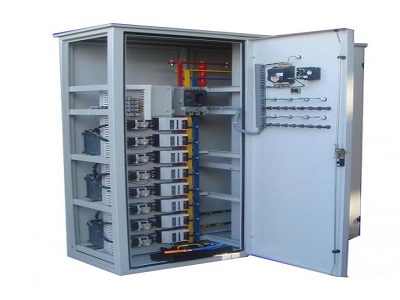

The Panels are equipped with Automatic Power Factor Controller regulator,
switching contactors, MCBs, Cylindrical capacitors Brands like EPCOS,
TIBCON & ZEZ SILKO and fuses
Main switch is installed in all APFC Panels (three−phase circuit breaker or fuse
switch).
We have different types of APFC, DPFC and RPF Panels Manufacturing and
given to the right product to the industries depends on their loads and
connection patterns.
